item

Specification

Capacity

Battery capacity,3.85V-10AH，38.5WH

Battery type

Polymer，136079*1，10000mAh

Output port

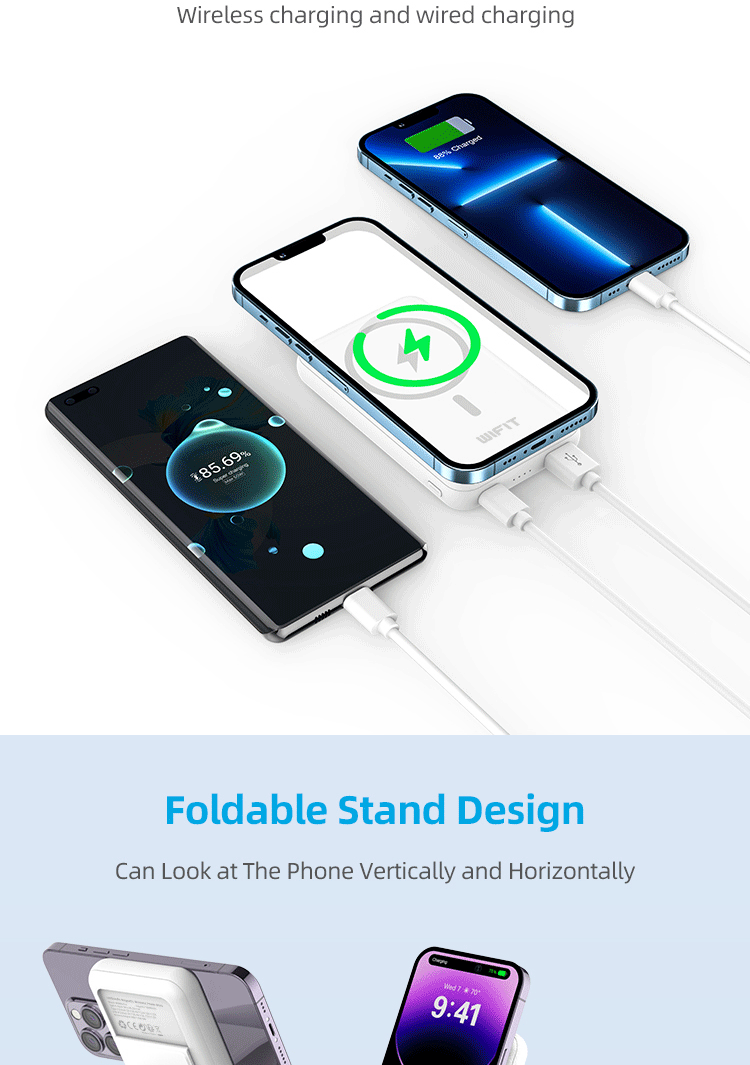

USB A x 1，Type C x 1，Wireless Charging

input port

Type C

Rated input

TypeC :QC3.0,PD3.0,FCP, AFC Fast Charging Input。PD3.0, 5V/3A / 9V2.0A

Rated output

USB1: Compatible QC3.0,AFC,FCP

4.75-5V/3A，6.5-9V/2A， 9-12V/1.5A

FCP Fast charging： 9V/2A

AFC Fast charging： 9V/2A

Type C: Compatible PD3.0,QC3.0,AFC,FCP

 5-6.5V/3.0A， 6.5-9V/2A， 9-12V/1.5A

FCP Fast charging： 9V/2A

 PD: 5V/3A /9V/2.2A/ 12V/1.5A

Wireless Charging: 5W/7.5W/10W

USB1+Type C: 5V/3A max （Two ports output at the same time, the output is 5V/3.0A）

When any two channels are output at the same time, the output voltage drops to 5V standard output.

Indicator light

4 power indicator LEDs, 1 wireless charging indicator

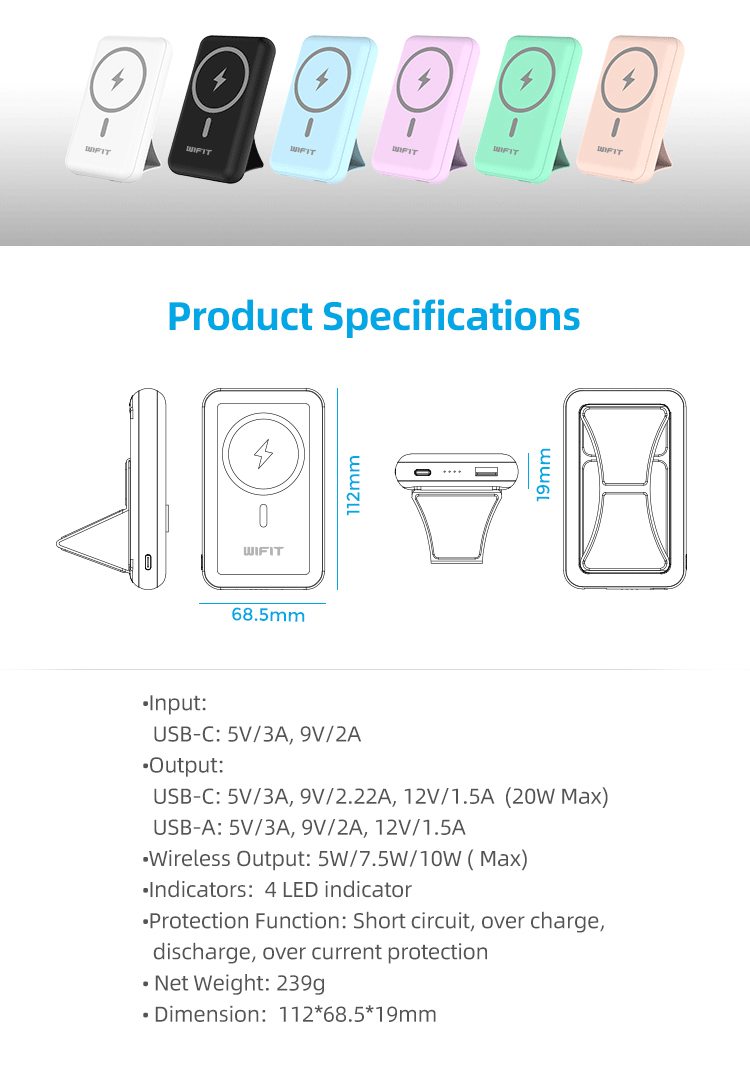

Product size

112.2*68.5*18.2mm

Weight

About 240g

Type C

5V 2.0A

5V/3.0A

9V/2.0A

6.5-9V/2A

PD3.0,QC3.0,AFC,FCP

item

Specifications

Min

TyPe

MAX

Output voltage (Type C)

No load voltage

4.75

5.0

5.25

Rated load voltage (Battery≥3.7V， Tested on USB pins

4.75

5.0

5.25

8.55

9.0

9.45

11.40

12.0

12.6

Output voltage (USB A)

No-load output voltage: standard QC3.0 output

/

/

/

/

/

/

/

/

/

/

/

/

Output current: USBA (separate output)

5-6.5V/battery voltage: 3.7V

/

3.0A

/

6.5-9.0V/battery voltage: 3.7V

/

2.0A

/

9-12V/battery voltage: 3.7V

/

1.5A

/

Output current: Type C (separate output)

5V/battery voltage: 3.7V

/

3.0 A

/

PD/5V

  3 A

PD/9V

2.22 A

PD/12V

1.5A

Output current: Type C+USBA (simultaneous output)

5V/battery voltage: 3.7V

/

3.0A

/

USB D+D-

D+/D-identification voltage of USB complies with BC1.2/QC3.0/SCP/FCP/AFC

/

/

Intelligent identification

No load sleep time

No loading sleeping time-

Power-on no-load state (usb1)

Starting no -load state

20

30

40s

PCBA output efficiency

5V3.0A output efficiency (battery voltage 3.7V)

85%

88%

90%

9V/2.0A (battery voltage 3.7V)

85%

87%

-

12V1.5A (battery voltage 3.7V)

85%

87%

-

Quiescent current

No load automatically enters sleep mode after the product is started

/

/

200uA

Conversion efficiency

The product is charged until all four lights are on, placed for 2 hours, discharged and output at 5V/2.4A, addressed to the discharge protection, and the output is turned off

6000mAh

-

The product is charged until all four lights are on, placed for 2 hours, discharged and output at 5V/1A, addressed to the discharge protection, and the output is turned off

6200mAh

-

ITEM

Specification

Min

Type

Max

OperatingTemperature

Environmental temperature around the product normal work

-10

25

40

Storage Temperature

1 year

-20

25

40

3 month

-20

25

40

1 month

-20

25

40

Operating humidity

Environmental humidity around the product normal work

10%

70%

90%

Storage humidity

Storage temperature product Storage humidity product doesn’t work

5%

70%

90%

Item

Test conditions

Acceptance criteria

High temperature

discharge

2.1A current discharge for 2 hours at 45±2℃,stay 4H

Normal working

Low temperature

discharge

4H，1.0A current discharge for 2 hours at-10℃±2℃,stay 4H

Normal Working

Temperature rise

25℃ environment,rated voltage and load Conditions,the temperature rise test shell surface

Skin temperature is less Than 65℃

Battery life

Battery 0.2c cycles 300times,life 60%

300times

Electrostatic ESD

According to IEC61000-4-2 test, contact discharge ± 4Kv,

Air discharge ± 8Kv

Reference standard IEC 61000-4-2:Contact discharge :±4Kv,air discharge:±8Kv

Class A or B

Item

Test condition

Acceptance criteria

Vibration

Frequency:10-55Hz Displacement:0.35mm

Duration: 2 Hours

 Sweep:For each axis(X,Y,Z)

Normal functional test should be satisfied after the test.

USB in and out test

Insert the USB-in connector is ≤35N dynamics control, life 3000 times(Min). The allocated 0-3000 times, efforts should be in the range of 8N (Min).

 Does not affect its performance.

Drop test

Drop the adapter from 1.0m height onto a 20mm thickness wood ,hiting the powerbank 6 times with

each surface 1 time.

No mechanical damage,and no safety function abnormality.

Salty fog test for metal part

 Salty water thickness:5%

 Temperature: 15～35℃

Test time:24 Hours

Recovery:2 Hours by 25℃

No erode and rust.
