WISHAKE
重量
kg
Quantity
-
+
Stock
10
隐藏域元素占位
- Details
- Parameter
-
Key words:- WISHAKE
-
Sample Information

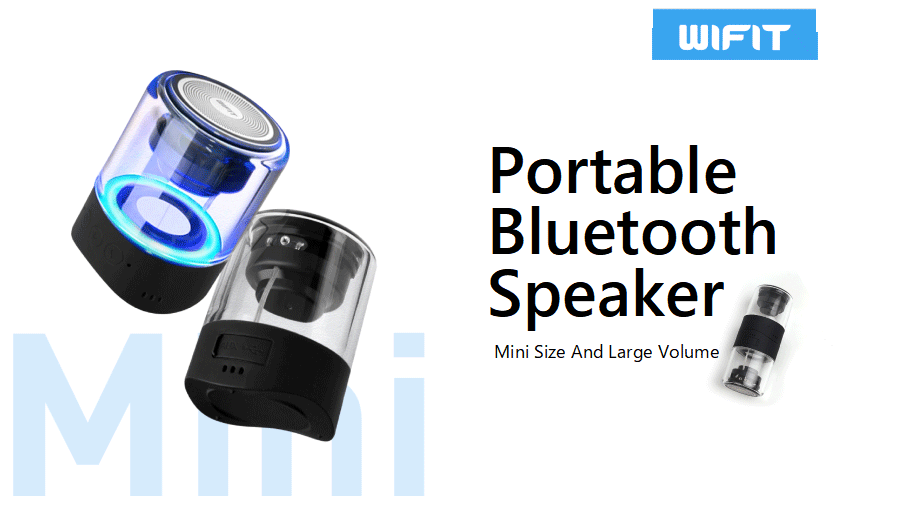

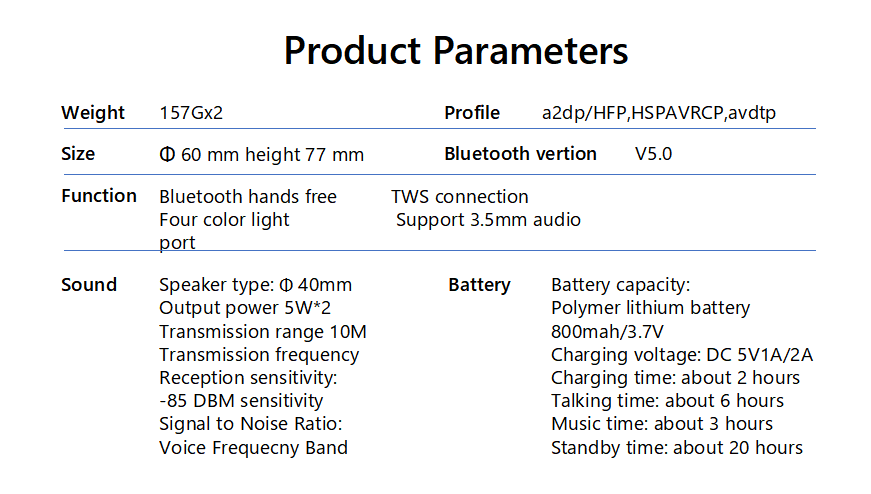

Basic information product name Bluetooth speaker product model MK-22 product pairing name tinno product pairing name chip model jieli AC6926A Bluetooth version bluetooth V5.0 support profile HFP/A2DP/AVCTP launch power : + 4dbm communication distance 10 meter working band ISM wave band（2.402-2.480GHZ） charging voltage 5V working voltage 3.7V battery specification Rechargeable polymer lithium battery （702040),3.7V 800MA product size（one piece） Diameter 60MMX height 77MM （one piece） product weight （one piece） about 165g （one piece） signal to noise ratio more than 83DB receptive sensitivity ：-85 DBM charging port MICRO amplifier performance power output power：3W Function Bluetooth support ISM wave band（2.402-2.480GHZ） call function support external sound input support 3.5MM audio plug. flash of light support for multiple colourful flashing ways voice prompts English TWS（interconnection）function support Functional Operation
Basic Functions key function name operating mode and status power key boot pairing Press and hold the power button for 3 seconds, then double-click the play button after power on to let TWS pair the 2 speakers successfully (press and hold the 3s button for shutdown) play key tws paring When the two small speakers are both turned on, double-click the play button to make the two small speakers TWS paired and connected successfully, otherwise the operation may be unsuccessful. （TWS successfully connected to the phone, the speaker will automatically shut down after 10 minutes without playback） automatic reconnection When powering on, it will automatically reconnect to the default last connected phone. hang up the phone During a call, press the play button once reject the call long press the play key when call comes in answer the call when there is a call voice prompt, short press the play key can be answered . music pause/play Short press the play button cancel the phone pairing Long press the play button to unpair with the phone External sound pause/play Short press the play button battery power display After the headset is successfully connected, it supports the IOS system and some Android phone battery power displays. power key power off long press the power key in the power off state appears the ‘’power off’’prompt sound power on long press the power key appears the ‘’power on’’prompt sound external sound function When an external sound is input into the external sound line, it is automatically detected and switched to the external sound mode, or when the LINE line is plugged in, press the power button to switch between external sound and Bluetooth. flash light function in the boot case,the default is not flashing light state ,short press the flash light button to switch 7 kinds flashing mode Flashing Status Display

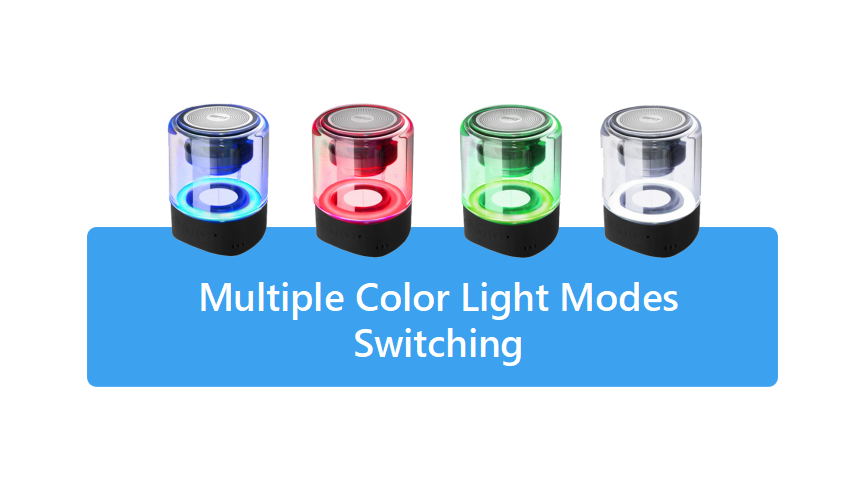

first mode red light breathing slow flash mode second mode green light breathing slow flash mode third mode blue light breathing slow flash mode fourth mode white light breathing slow flash mode fifth mode Red, green, blue and white lights take turns breathing slow flash mode sixth mode red,green,blue,white light revolving lamp flash mode seventh mode when music is played,the. LED lights flash along with the music; when there’s no music, the light is in breathing slow flash mode
Indicator Light Status Displaycharing mode the red light is on fully charged mode. the red light is off Bluetooth searching & Pairing (power on status)

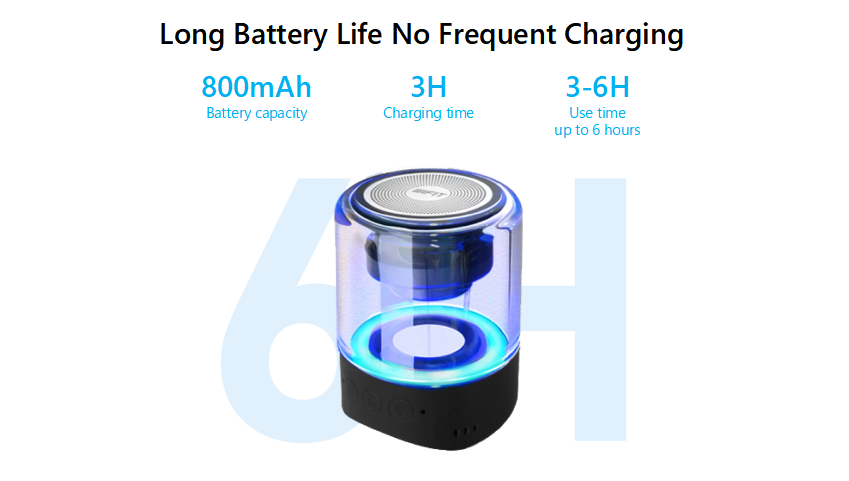

red light and blue light flash quickly and alternately Power off status none lights flashing playing mode blue light slow flash(7 seconds once time) standby mode blue light slow flash(7 seconds once time) in coming call blue light slow flash(7 seconds once time) tws connection is made after the tws convection is successful ,the primary sound speaker’s red and blue light flash alternately, secondary speaker’s blue light flash 7 seconds once time speakers are connected to the phone blue light slow flash(7 seconds once time) line mode red light slow flash(7 seconds once time) charging time about 2 hours low power prompt voltage about 3.4V music time About 3 hours talking time about 6 hours. standby time about 20 hours VoicePrompt Content
System language English Power on power_on power off power_off Bluetooth mode BT external sound mode. LINE tws connected successfully TWS Connected disconnect to the phone pairing connected to the phone paired low power. Battery low Charging time About 2.5 hours Battery Polymer /3.7V/800MA charging current ≤380mA charging indicator when charging,the red light is always on and the light is off once fully charged Speaker specification
speaker impedance 4Ω±3%Ω composite membrane horn sensitivity 85+/-3DB frequency range 70-18KHZ speaker output power 5W speaker size 40mm composite membrane horn Mic Specification
size ：4015 sensitivity -42+/-3db
